Product Details:
|
| Product Name: | Explosion Proof High Bay Led Lights | HZ: | WF2 |
|---|---|---|---|
| Color Temperature(CCT): | 5700K | Lamp Luminous Efficiency: | 140 Lm/w |
| CRI (Ra>): | 80 | Power: | 50-150W |
| Application Area: | Zone 1/2&21/22 | SIze: | 300*300*240 |
| Light Source: | CREE | IP Rating:: | IP66 |
| Highlight: | ATEX Approved Explosion Proof Led Lights,Stadium IP66 Explosion Proof Led Lights,Zone21 High Bay Lights |
||

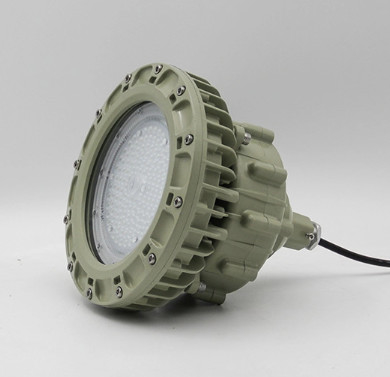

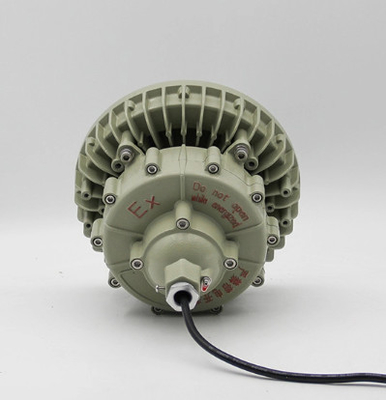

ATEX Approved Explosion Proof Led Lights Stadium Flame Zone 1&21 High Bay Lights
Standard Materials:
Housing: Die-casting aluminum
Exterior: Stainless steel
Globe: Tempered glass
Gasket: Silicon rubber
Features:
Zone 1&2, Zone 21&22
Instant on crisp white light output
High efficiency drivers and LEDs provide, low cost operation in harsh and heavy industrial applications
Isolated LED compartment reduces temperature within driver housing
Multi choice of beam angle for 60° 90° 120°
Specification:
| Power | 50W | 75W | 100W | 150W |
| LED | CREE | |||
| Luminou flux | ≥5000lm (100-120lm/w) | ≥10000lm (100-120lm/w) | ≥15000lm (100-120lm/w) | ≥20000lm (100-120lm/w) |
| Material: | Die-casting Aluminum | |||
| Driver | MEANWELL | |||
| Beam angle | 120° | |||
| Anticorrosive grade | WF2 | |||
| IP Rating | IP66 | |||
