Product Details:
|
| Name: | Explosion Proof Linear LED Light | Input Voltage: | 220-380VAC, 50-60Hz |
|---|---|---|---|
| Ex Marking: | ExdIICT6Gb；ExtDA21IP65T80℃ | Item Type: | Explosion Proof Fluorescent Led Light |
| LED Tubes Size: | 0.6m 1.2m | Conduit Entries: | G 3/4" G1” |
| IP Degree: | IP65 | Color Temperature(CCT): | 5800K |
| Lamp Luminous Efficiency: | 128lm/w | Mounting Styles: | Pendant; Ceiling; Stanchion |
| Highlight: | Zone 1 Led Fluoresce Light,18w Led Fluoresce Light,18w Explosion Proof Fluoresce Light |
||

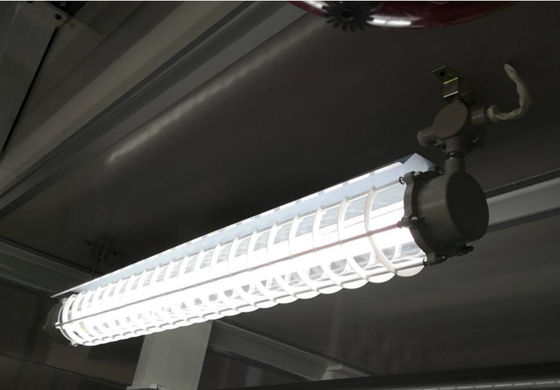

Zone1 Zone2 Flame Proof 2*18w Led Explosion Proof T8 Fluoresce Light
Application
BPY explosion-proof LED explosion-proof lamp is suitable for fixed lighting places such as mine tunnels and chambers where methane or coal dust explosion is dangerous.
There are also tunnels, pharmaceutical factories, chemical plants and other zone1,2 & zone 21,22 are flammable and explosive dangerous places
Feature:
1. Voltage electrostatic plastic-spray surface.
2. The transparent explosion-proof toughened glass tube and the protective net cover are used as the lamp tube, which has high light transmittance and meets the requirements of impact strength.
3. The professionally designed LED light source heat dissipation structure is built in the lighting category, which has good thermal conductivity and meets the requirements of explosion-proof structure. At the same time there are T5/T8 fluorescent tube options.
4. Large number of led light sources, matrix layout, uniform light output and wide light output range.
5. Steel pipe wiring or cable wiring.
|
European (ATEX)
|
ExdIICT6Gb；ExtDA21IP65T80℃ |
|
Input voltage
|
220VAC-380VAC, 50-60Hz
|
|
Degree of protection
|
IP65
|
|
Mounting Styles
|
Pendant; Ceiling; Stanchion
|
|
Type
|
BPY-600 (Single/Double)
|
BPY-900 (Single/Double)
|
BPY-1200 (Single/Double)
|
|
T8 Fluorescent tube
|
(1~2)*18W
|
(1~2)*30W
|
(1~2)*36W
|
|
LED tube
|
(1~2)*8W
|
(1~2)*12W
|
(1~2)*16W
|
|
Size
|
L710*W145 For Single
L710*W210 For Double
|
L1050* W145 For Single
L1050* W210 For Double
|
L1350* W145 For Single
L1350*W210 For Double
|
|
Type
|
BPY-T5-600 (Single/Double)
|
BPY-T5-1200 (Single/Double)
|
|
T5 Fluorescent tube
|
(1~2)*14W
|
(1~2)*28W
|
Dimension & Installation [mm]
