Product Details:
|
| Brand: | Crown Extra | Product Name: | Explosion Proof Linear Lights /BYS |
|---|---|---|---|
| Model: | BYS-1200 | Beam Angle: | 120-140° |
| Efficiency: | 100lm/w | CRI: | Ra:≥70 |
| CCT: | 3000/4000/5000/5700K,other Colour Temperatures Can Be Customized | Certified: | CNEX,EX,IP66,IEC,IECEX |
| Mounting: | Ceiling,Flange,Wall Pendant | ||
| Highlight: | 100lm/w Explosion Proof Light,54w Explosion Proof Light,18w Explosion Proof Light |
||

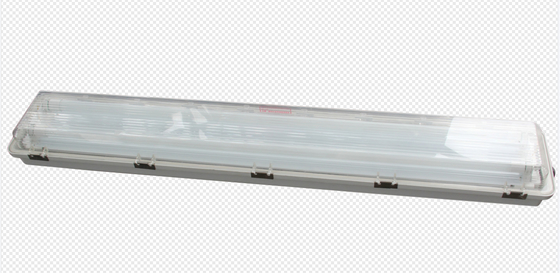

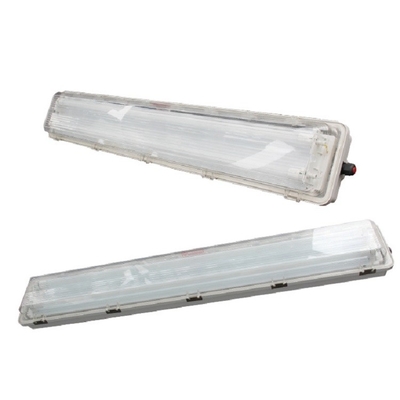

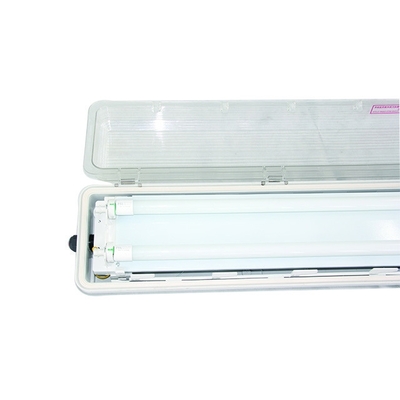

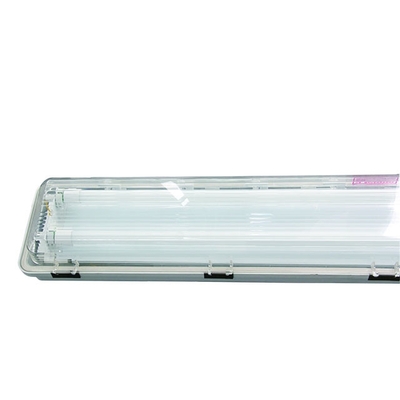

New Product 18w 36w 54w GRP material Linear Led Explosion Proof Light 1.2M 100lm/w with 5 Years Warranty Atex
BYS Series

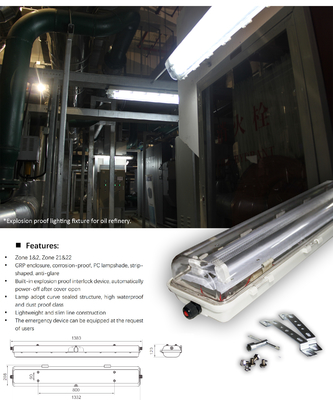

Features:
Applications
| Typical applications include: |
| Oil and gas industries |
| Chemical, petrochemical |
| Pharmaceutical industries |
| Pulp and Paper |
| Waste and sewage treatment |
| Power Generation |
| Other high humidity, high dust, high temperature, vapor locations |
| Housing: | Fiber-glass reinforced polyester |
| Exterior: | Stainless steel |
| Globe: | Polycarbonate, anti-glare |
| Gasket: | Silicon rubber |
| Certifications |
ATEX
CNEX
CE
RoHS
ISO9001
|
| Ex Marking | Ex d e IIC T6 Gb/ DIP A21 TA |
| Classification | Group II, Catogory 2 GD; Class I, Division 1 and 2,Group A,B,C,D; |
| IP Degree | IP66 |
| Corrosion Resistant | WF2 |
| Rated Voltage | 110VAC; 220VAC/50~60HZ |
| Battery Back-up | Optional, Emergency time>90min;Charging time:24h;Starting time:0.3s |
| Conduit Entries | G 3/4" |
| Terminal | ≤2.5mm2 |
| Mounting Styles | Pendant; Ceiling; Chain; Embedded; Wall; Stanchion |
| Model NO. | BYS-600 | BYS-1200 |
| T8 Fluorescent tube | (1-3)*18Watt (1350Lm,75Lm/W) | (1-3)*36Watt (2700Lm,75Lm/W) |
| T5 Fluorescent tube | (1-3)*14Watt(1350Lm,96Lm/W) | (1-3)*28Watt (2100Lm,75Lm/W) |
| LED tube | (1-3)*8Watt (800Lm,100Lm/W) | (1-3)*18Watt (1800Lm,100Lm/W) |
Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
