Product Details:
|

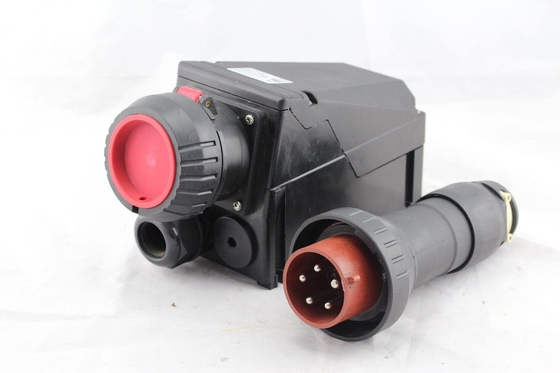

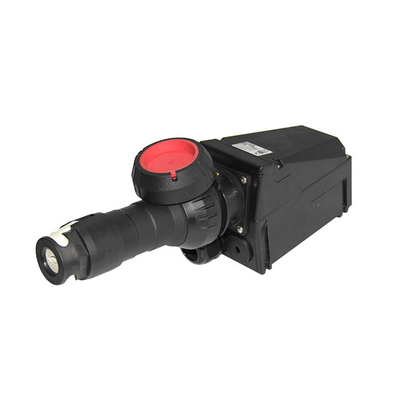

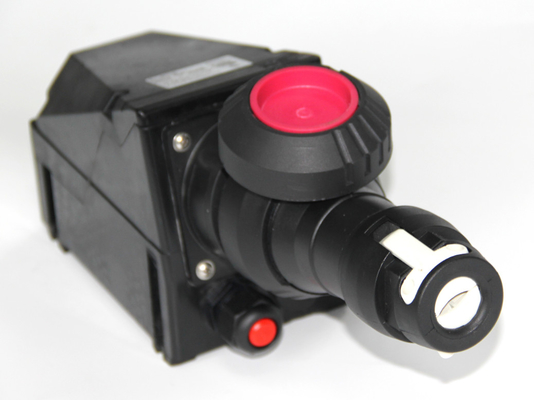

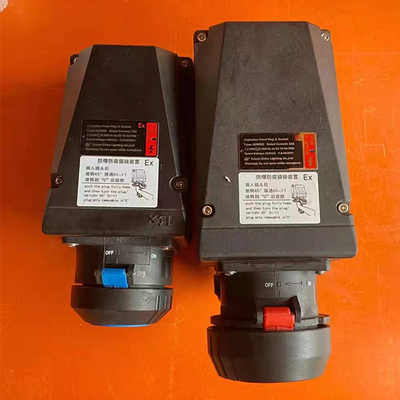

| Brand: | Crown Extra | Type: | Explosion Proof Pulg And Socket |
|---|---|---|---|
| Rated Current [A]: | 16 | Degree Of Protection: | IP65 |
| Rated Voltage: | 220/380VAC | Ex Mark: | Ex D E IIC T6 Gb |
| Highlight: | Explosion Proof plug and socket,Industrial Explosion Proof waterproof plug,Explosion Proof waterproof plug |
||
| A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present |
| Areas requiring frequent on-and-off of lights or power cycling- no warm up time required |
| Areas requiring frequent on-and-off of lights or power cycling- no warm up time required |
| Oil and gas industries |
| Chemical, petrochemical |
| Pharmaceutical industries |
| Pulp and Paper |
| Waste and sewage treatment |
| Housing: | GRP |
| Exterior: | Stainless steel |
| Certifications |
ATEX
CNEX
CE
RoHS
ISO9001
|
|
Type
|
Plug & Receptacle
|
||
|
Ex rate
|
Ex d e IIC T6 Gb
|
||
|
Rated Current [A]
|
16 | 32 | 63 |
|
Rated voltage
|
220/380VAC
|
||
|
Degree of protection
|
IP65 | ||
|
Entries
|
M25*1.5 (suitable for
Φ8mm-Φ17mm cable)
|
M40*1.5 (suitable for
Φ13mm-Φ27mm cable)
|
M40*1.5 (suitable for
Φ13mm-Φ27mm cable)
|
|
The cable for plug
|
Φ8mm-Φ19mm
|
Φ12mm-Φ28mm
|
Φ12mm-Φ28mm
|
Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.
