Product Details:
|
| Product Name: | Explosion Proof High Bay Light GYD810 | Model: | GYD810 |
|---|---|---|---|
| Voltage: | AC 100-277V,50HZ/60HZ:24/36VDC | Efficiency: | 135lm/w |
| CRI: | Ra:≥80 | CCT: | 3000/4000/5000/5700K |
| Certified: | CNEX,EX,IP66,IEC,IECEX | Mounting: | Bracket.Ceiling,Flange Mount,Wall Mount |
| Highlight: | 5000K Explosion Proof High Bay Light,200W Explosion Proof High Bay Light,150W Explosion Proof High Bay Light |
||

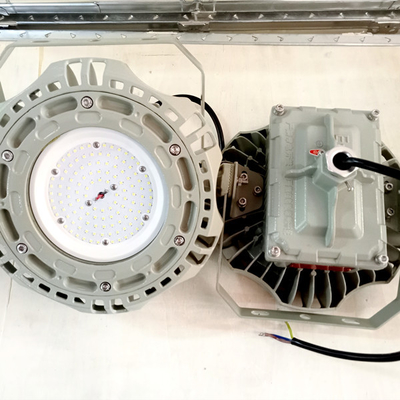

Explosion Proof High Bay Light 50W/100W/150W/200W Aluminum 5000K Industrial Factory Garage Use
GYD810 Series
Features:
Zone 2, Zone 21&22
Instant on crisp white light output
High efficiency drivers and LEDs provide Low cost operation in harsh andheavyindustrial applications
Isolated LED compartment reducestemperature within driver housing
Multi choice of beamangle for 60° 90° 120°
Applications
| Typical applications include: |
| Oil and gas industries |
| Chemical, petrochemical |
| Pharmaceutical industries |
| Pulp and Paper |
| Waste and sewage treatment |
| Power Generation |
| Other high humidity, high dust, high temperature, vapor locations |
| Housing: | Die-casting aluminum |
| Exterior: | Stainless steel |
| Globe: | Tempered glass |
| Gasket: | Silicon rubber |
| Certifications |
ATEX
CNEX
CE
RoHS
ISO9001
|
| Rated voltage | 100-277VAC, 50-60Hz |
| Power factor | >0.95 |
| THD | <20% |
| Power consumption [W] | 30-70W, 100-120w,150-200w,240w |
| Colour rendering [CRI] | 70 (±2) |
| Colour temperature [K] | 6000-6500 |
| Luminaire efficiency[Lm/W] | 115-130 |
| Beam angle | 120° (45°, 90° is optional) |
| Degree of protection | IP66 |
| Cable entry | G 3/4” |
| Weight [kg] | 5,6.5,8.5,9.5 |
| Terminal | ≤2.5 mm² |
| Mounting Styles | Ceiling; Wall Bracket; Pendant |
GYD810 Series
Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.
