Product Details:
|
| Product Name: | Explosion Proof Clean Lighting Fixtures | Model: | BPY |
|---|---|---|---|
| Power: | 18/36/54/72W | Beam Angle: | 120-140° |
| Efficiency: | 100lm/w | CRI: | Ra:≥70 |
| Certified: | CNEX,EX,IP66,IEC,IECEX | Mounting: | Ceiling,Embedded |
| CCT: | 5500-6500K,other Colour Temperatures Can Be Customized | ||
| Highlight: | 0.6M Explosion Proof Linear Light,1.2M Explosion Proof Linear Light,100LM/W Explosion Proof Linear Light |
||

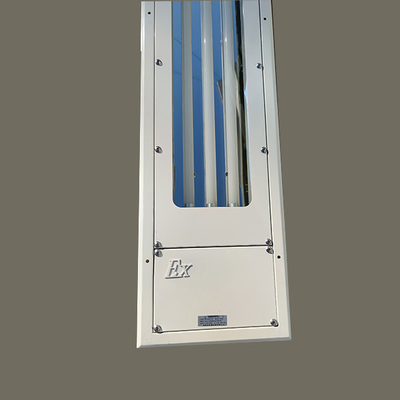

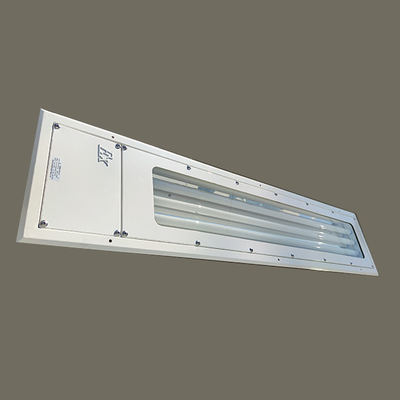

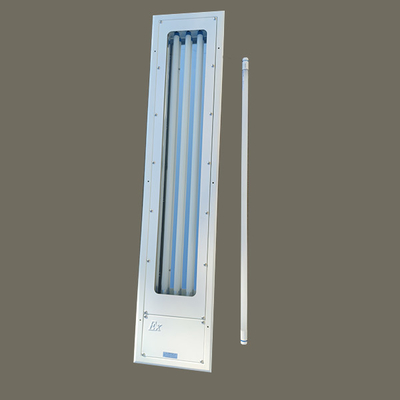

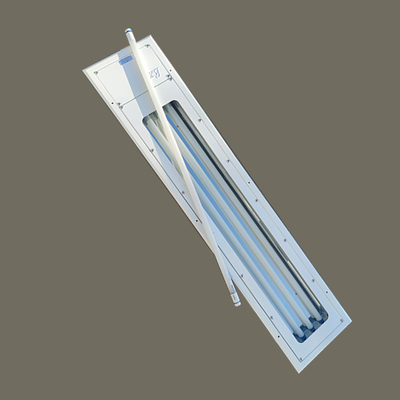

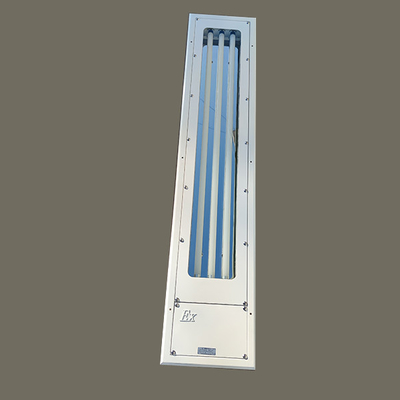

0.6M 1.2M 100LM/W Linear led explosion proof 36w industrial lamp Safe T6 LED steel Explosion proof linear light
BHY Series
Features:
Applications
| Typical applications include: |
| Oil and gas industries |
| Chemical, petrochemical |
| Pharmaceutical industries |
| Pulp and Paper |
| Waste and sewage treatment |
| Power Generation |
| Other high humidity, high dust, high temperature, vapor locations |
| Housing: | Steel plate, Stainless steel optional |
| Exterior: | Stainless steel |
| Globe: | Polycarbonate, anti-glare |
| Gasket: | Silicon rubber |
| Certifications |
ATEX
CNEX
CE
RoHS
ISO9001
|
| Ex Marking | Ex d e IIC T6 |
| Classification | Class I, Division 1 and 2,Group A,B,C,D; ZONE1 ZONE21 AND 22 |
| IP Degree | IP66 |
| Corrosion Resistant | WF2 |
| Input Voltage | 220VAC, 50/60 Hz |
| Battery Back-up | Optional, Emergency time>90min;Charging time:24h;Starting time:0.3s |
| Power Factor | 0.98 |
| Conduit Entries | G 3/4" |
| Mounting Styles | Pendant; Ceiling; Chain; Embedded; Wall; Stanchion |
| Model No. | BHY | BHY-Tri tube |
| T8 Fluorescent tube | 2*40W | 3*40W |
| T5 Fluorescent tube | 2*28W | 3*28W |
| LED tube | 2*18W | 3*18W |
Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.
