Product Details:
|
| Product Name: | Explosion Proof Exit Sign/ BYY | Power: | 3W |
|---|---|---|---|
| Voltage: | 220VAC 24/36VDC | Efficiency: | 100lm/w |
| CRI: | Ra:≥70 | CCT: | 3000/4000/5000/5700K |
| Certified: | CNEX,EX,IP66,IEC,IECEX | Mounting: | Wall |
| Ambient Temperature: | -44℃~+44℃ |

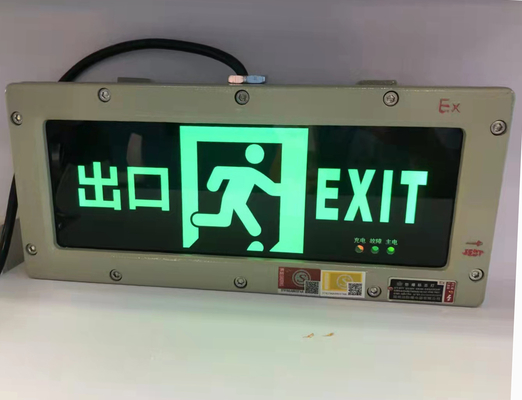

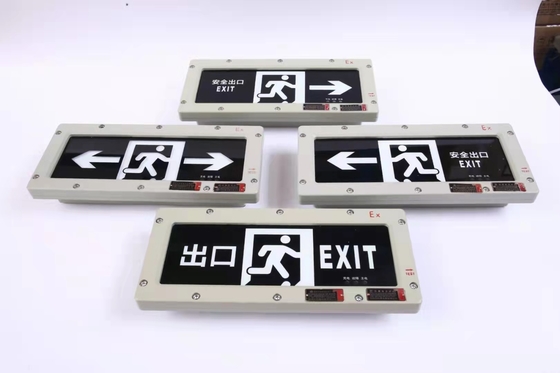

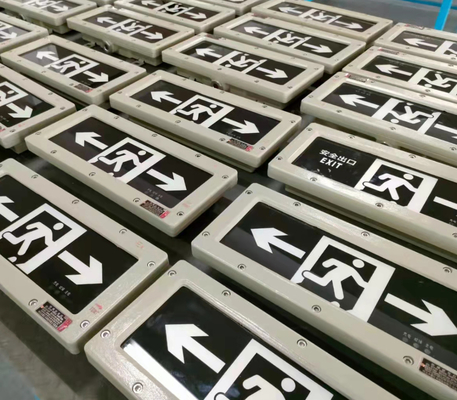

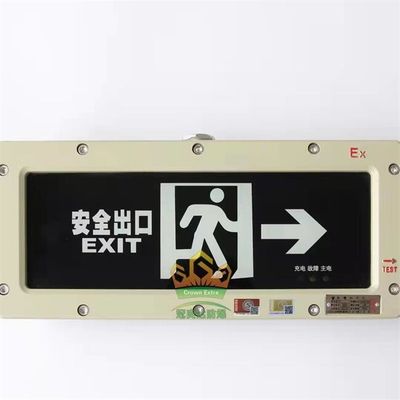

3W 100lm/w waterproof IP65 explosion proof LED emergency warning light Exit Sign explosion-proof light
BYY Series
Features:
Applications
| Explosive hazardous atmosphere Zone 1, 2 & Zone 21,22 |
| Widely used for safety exit indication and marking on various marine platforms, chemical tankers, LNG ships and dangerous cargo wharfs ect. |
| Can reliably work in severe environment where is easily affected by moisture, vibration, or corrosion. |
| Housing: | Die-casting aluminum |
| Exterior: | Stainless steel |
| Globe: | Tempered glass |
| Gasket: | Silicon rubber |
| Certifications |
ATEX
CNEX
CE
RoHS
ISO9001
|
| Ex Marking | Ex e IIC T6/ Ex tD A21 T80℃ |
| Application | Zone 1, 2 & Zone 21, 22 |
| IP Degree | IP65 |
| Corrosion Resistant | WF1 |
| Wattage | 1.5-3W |
| Entries | G 3/4" Conduit Entry, Suitable for Φ10mm-Φ14mm cable |
| Input Voltage | DC 110V;AC220V 50Hz |
| Red Lettering | Optiional |
| Back-up Battery | >120 min |
| Weight | 3.25kg |
| Mounting Styles | Pendant; Ceiling; wall |
Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
