Product Details:
|
| Length: | 1200mm | Frequency: | 50/60Hz |
|---|---|---|---|
| Power Factor: | 0.98 | Size: | 1380x208x120mm |
| Lamp Luminous Efficiency: | 100lm/w | Beam Angle: | 120-140° |
| Power: | 18/36/54W | Tube Number: | 1 Tube, 2 Tubes And 3 Tubes |
| Highlight: | Corrosion Resistance Fluorescent Fixture,120-140° Angle Fluorescent Fixture,Anti Explosive Fluorescent Fixture |
||

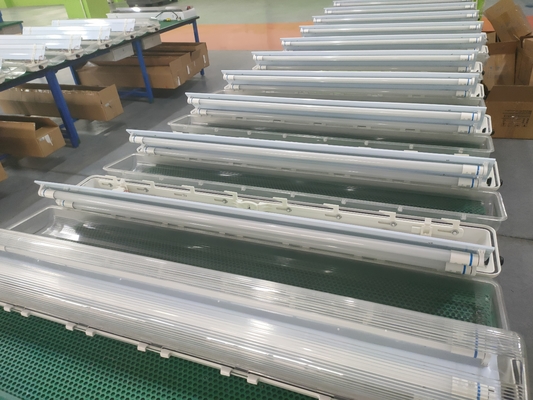

Available in 1 Tube, 2 Tubes, and 3 Tubes configurations, this Explosion-Proof Fluorescent Fixture can deliver up to 140 degrees beam angle to provide uniform illumination across a large area. It is also available in different mounting options, including ceiling, wall, flangle, and pendant, to suit various installation requirements.
Constructed with a rugged and durable housing, this Explosion Proof Fluorescent Light can withstand harsh environmental conditions and resist corrosion, making it ideal for use in oil rigs, chemical plants, refineries, and other industrial facilities. Its length is available in 600mm/1200mm, making it suitable for different lighting applications.
With its high efficiency and low maintenance requirements, this Explosion Proof Fluorescent Light is an excellent choice for those who need reliable and durable lighting solutions in hazardous environments. Whether you need to illuminate a large work area or provide emergency lighting in case of power outages, this fixture is the perfect choice for your needs.
1.GRP enclosure, corrosion-proof, Polycarbonate lampshade, strip-shaped with anti-glare
2.Special locking mechanism, with reliable locking force
3.Built-in explosion proof interlockdevice, automatically power-off after cover open
4.The emergency device can be equipped
| Ex Marking | Ex d e IIC T6 Gb/ DIP A21 TA |
| Classification | Group II, Catogory 2 GD; Class I, Division 1 and 2,Group A,B,C,D; |
| IP Degree | IP66 |
| Corrosion Resistant | WF2 |
| Rated Voltage | 110VAC; 220VAC/50~60HZ |
| Battery Back-up | Optional, Emergency time>90min;Charging time:24h;Starting time:0.3s |
| Conduit Entries | G 3/4" |
| Terminal | ≤2.5mm2 |
| Mounting Styles | Pendant; Ceiling; Chain; Embedded; Wall; Stanchion |
| Model NO. | BYS-600 | BYS-1200 |
| T8 Fluorescent tube | (1-3)*18Watt (1350Lm,75Lm/W) | (1-3)*36Watt (2700Lm,75Lm/W) |
| T5 Fluorescent tube | (1-3)*14Watt(1350Lm,96Lm/W) | (1-3)*28Watt (2100Lm,75Lm/W) |
| LED tube | (1-3)*8Watt (800Lm,100Lm/W) | (1-3)*18Watt (1800Lm,100Lm/W) |
The BYS Model from Crown Extra is manufactured in China and is designed to be corrosion-resistant, making it suitable for use in harsh environments where there is exposure to chemicals or moisture. This Fluorescent Light has a Lamp Luminous Efficiency of 100lm/w, which means that it provides bright and efficient illumination in areas where it is installed. The light is mounted on the Ceiling, Wall, Flangle, or Pendant, making it flexible for installation in different locations.
The Cable Specifications for the Crown Extra BYS Fluorescent Light are 9~14mm, which ensures that the cables are of the right size for the installation location. The Fluorescent Light is packed in 1SET/CTN, and the Minimum Order Quantity is 1SET. The price of the BYS Fluorescent Light ranges from $50.00-$80.00, making it an affordable option for businesses operating in Hazardous Locations.
The Delivery Time for the Crown Extra BYS Fluorescent Light is 5-10Days, and the Payment Terms are 50%+50%. The Supply Ability of the Fluorescent Light is 5000SET/Month, which ensures that businesses can order the required number of Fluorescent Lights for their operations. The BYS Fluorescent Light is suitable for use in a wide range of applications, including oil and gas refineries, chemical plants, mining operations, and other industrial settings.
In summary, the Crown Extra BYS Fluorescent Light is a reliable and efficient lighting solution for businesses operating in Hazardous Locations. Its certification by ATEX, corrosion resistance, and Lamp Luminous Efficiency make it a cost-effective option for businesses seeking to improve their lighting systems. With flexible mounting options, the BYS Fluorescent Light can be installed in different locations, making it suitable for a wide range of applications.
Our Explosion Proof Fluorescent Light product is built to meet the demands of hazardous locations where flammable gases and vapors may be present. Our technical support team is available to assist with any questions related to installation, operation, and maintenance of the product. Our services include on-site training, repair, and replacement of parts as needed. We also offer warranty and post-warranty support to ensure maximum uptime and reliability of the product.
Here are some frequently asked questions and answers about the Crown Extra BYS Explosion Proof Fluorescent Light:
Q: What is the brand name of this product?
A: The brand name of this product is Crown Extra.
Q: What is the model number of this product?
A: The model number of this product is BYS.
Q: Where is this product made?
A: This product is made in China.
Q: What certification does this product have?
A: This product has ATEX certification.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1 set.
Q: What is the price range for this product?
A: The price range for this product is between $50.00 and $80.00.
Q: What is the packaging detail for this product?
A: The packaging detail for this product is 1 set per carton.
Q: What is the delivery time for this product?
A: The delivery time for this product is 5-10 days.
Q: What are the payment terms for this product?
A: The payment terms for this product are 50%+50%.
Q: What is the supply ability for this product?
A: The supply ability for this product is 5000 sets per month.
