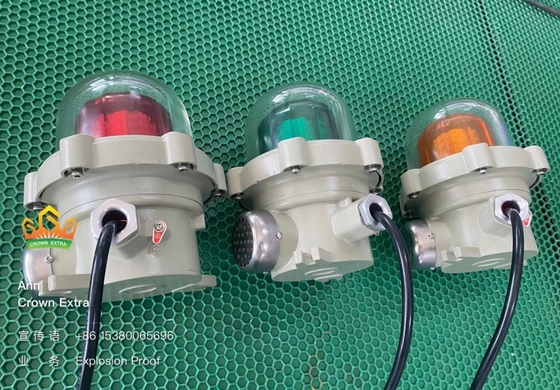

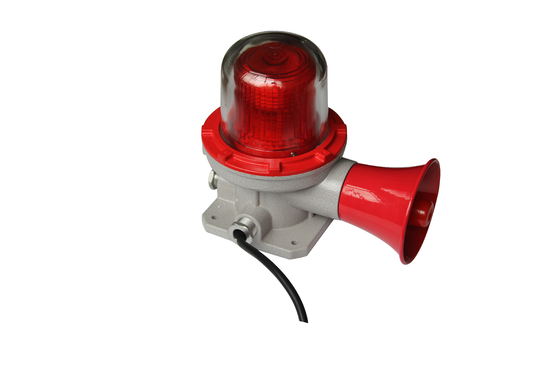

ATEX certified Explosion Proof Alarm Lights 150min Flash Frequency voltage 220VAC 50HZ 24VDC

ATEX certified Explosion Proof Alarm Lights 150min Flash Frequency voltage 220VAC 50HZ 24VDC
ATEX certified Explosion Proof Alarm Lights 150min Flash Frequency voltage 220VAC 50HZ 24VDC ATEX certified Explosion Proof Alarm Lights 150min Flash Frequency voltage 220VAC 50HZ 24VDC

Large Image :  ATEX certified Explosion Proof Alarm Lights 150min Flash Frequency voltage 220VAC 50HZ 24VDC

Product Details:
Place of Origin: China
Brand Name: Crown Extra
Certification: ATEX
Model Number: GYJ
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD21/pc
Packaging Details: CARTON、WOODEN BOX、PALLET
Delivery Time: 5-7 working days
Payment Terms: T/T
Supply Ability: 100000PCS Per month

ATEX certified Explosion Proof Alarm Lights 150min Flash Frequency voltage 220VAC 50HZ 24VDC

Description
Flash Frequency: 150min Net Weight: 2.5 Kg
Watts: 5~40W Standby Current: ≤50mA
Temperature Classes: T1~ T6 Mounting: Ceiling
Flashing Frequency: 150 Times/min Ip Rating: IP65
Highlight:

24VDC Explosion Proof Alarm Lights

,

220VAC Explosion Proof Alarm Lights

,

atex explosion proof alarm lights

ATEX certified Explosion Proof Alarm Lights With 150min Flash Frequency with the voltage 220VAC 50HZ, 24VDC

Product Description:

With an emergency start time of less than 0.3 seconds, our Blast Proof Indicator Lights ensure that warning signals are immediately visible in emergency situations. This feature is crucial in high-risk environments where every second counts.
Our Explosion Proof Alarm Lights are also highly corrosion resistant, with a rating of WF2. This means that they can withstand exposure to corrosive agents such as salt water, chemicals, and acids, making them ideal for use in offshore oil rigs, chemical plants, and other harsh environments.
These items come in four different colors - red, yellow, blue, and green - allowing for clear and easy identification of the type of hazard or emergency situation. Each unit has a wattage range of 5 to 40W, providing flexibility in choosing the appropriate level of brightness for the specific application.
Our Explosion Proof Alarm Lights are the ultimate solution for hazardous environments that require reliable and effective warning signals. With their rugged design and top-notch features, these warning lamps provide unparalleled safety and security in high-risk industrial settings.



Features:

  • Product Name: Explosion Proof Alarm Lights
  • Size: 220mm X 165mm X 135mm
  • Input Voltage: 220VAC, 50Hz
  • Watts: 5~40W
  • Mounting: Ceiling
  • Ex Mark: II 2GD Ex D E IIC T6 Gb / Ex Tb IIIC T130℃ Db
  • Description: The Explosion Proof Alarm Lights, also known as Blast Proof Indicator Lights, are designed to provide a Fire Hazard Warning Luminaire in hazardous environments. They are ceiling mounted and can operate at 220VAC, 50Hz with a power consumption range of 5~40W. The Ex Mark is II 2GD Ex D E IIC T6 Gb / Ex Tb IIIC T130℃ Db.


Technical Parameters:

Ex MarkingEx db IIB T4 Gb
ClassificationGroup II, Catogory 2 GD; Class I, Division 1 and 2,Group A,B,C,D;
IP DegreeIP66
Corrosion ResistantWF1/WF2
Input VoltageAC220-230V/DC24V/ DC36V
Decibel120-180db
Power5-40wW
Sound Strength90; 120; 180; 120
Flash Frequency150Times/min
ColorRed, Yellow, Blue, Green
Emergency start time<0.3s
Conduit EntriesG 3/4"
MountingCeiling
Net Weight1.8kg; 2.7kg; 3.7kg; 2.5kg


Applications:

A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
Areas requiring frequent on-and-off of lights or power cycling- no warm up time required
Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
Other high humidity, high dust, high temperature, vapor locations


Customization:

Brand Name: Crown Extra
Model Number: GYJ
Place of Origin: China
Certification: ATEX
Minimum Order Quantity: 1SET
Price: $50-$200
Packaging Details: 1SET/CTN
Delivery Time: 5-10 Working Days
Payment Terms: T/T
Supply Ability: 5000SET/Mounth
Emergency Start Time: <0.3s
Ex Mark: II 2GD Ex D E IIC T6 Gb / Ex Tb IIIC T130℃ Db
Power Consumption: 10W
Input Voltage: 220VAC, 50Hz
Watts: 5~40W
These Fume Proof Alarm Blinkers are designed to be Fire Hazard Warning Luminaire and Explosive Atmosphere Warning Signals. Customize your order to suit your needs with Crown Extra's product customization services.



Support and Services:

The Explosion Proof Alarm Lights product is designed to provide visual indication of alarm and emergency situations in hazardous areas where explosive gases and dusts may be present. Our technical support and services for this product include:

  • Assistance with product selection and customization to meet specific application needs.
  • Installation support, including wiring diagrams and guidance on proper mounting locations.
  • Maintenance and troubleshooting guidance to ensure reliable operation and extended product life.
  • Repair and replacement services in the event of product damage or failure.
  • Training and education on product features, operation, and safety considerations.

Our team of experts is dedicated to providing exceptional support and services to ensure that our Explosion Proof Alarm Lights product meets your needs and exceeds your expectations.



FAQ:

Q: What is the brand name of the explosion proof alarm lights?
A: The brand name is Crown Extra.
Q: What is the model number of the explosion proof alarm lights?
A: The model number is GYJ.
Q: Where are the explosion proof alarm lights made?
A: They are made in China.
Q: What certification do the explosion proof alarm lights have?
A: They have ATEX certification.
Q: What is the minimum order quantity for the explosion proof alarm lights?
A: The minimum order quantity is 1 set.
Q: What is the price range for the explosion proof alarm lights?
A: The price ranges from $50 to $200.
Q: What is the packaging detail for the explosion proof alarm lights?
A: The packaging detail is 1 set per carton.
Q: What is the delivery time for the explosion proof alarm lights?
A: The delivery time is 5-10 working days.
Q: What are the payment terms for the explosion proof alarm lights?
A: The payment terms are T/T.
Q: What is the supply ability for the explosion proof alarm lights?
A: The supply ability is 5000 sets per month.
