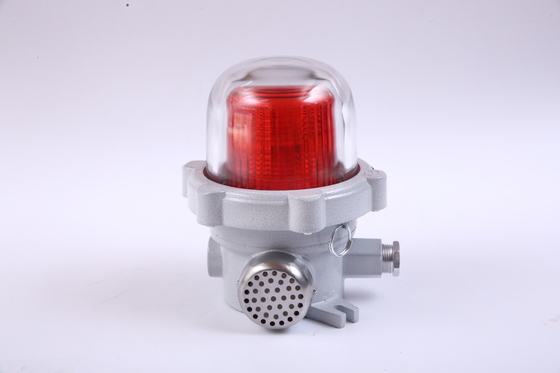

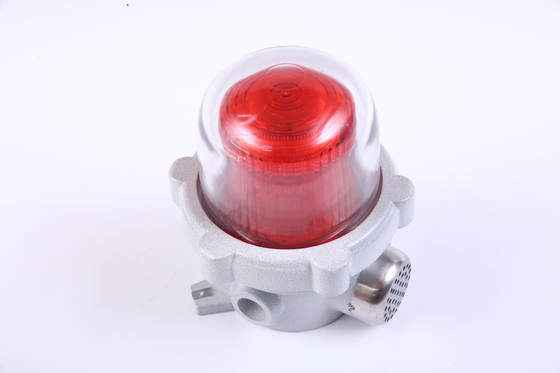

Aluminium Alloy Die Casting Shell 120-180db Explosion Proof Audible And Visual Alarms 50-40w Lights

Aluminium Alloy Die Casting Shell 120-180db Explosion Proof Audible And Visual Alarms 50-40w  Lights
Aluminium Alloy Die Casting Shell 120-180db Explosion Proof Audible And Visual Alarms 50-40w  Lights Aluminium Alloy Die Casting Shell 120-180db Explosion Proof Audible And Visual Alarms 50-40w  Lights Aluminium Alloy Die Casting Shell 120-180db Explosion Proof Audible And Visual Alarms 50-40w  Lights

Large Image :  Aluminium Alloy Die Casting Shell 120-180db Explosion Proof Audible And Visual Alarms 50-40w Lights

Product Details:
Place of Origin: China
Brand Name: Crown Extra
Certification: ATEX
Model Number: GYJ
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD21/pcs
Packaging Details: CARTON、WOODEN BOX、PALLET
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 100000PCS Per month

Aluminium Alloy Die Casting Shell 120-180db Explosion Proof Audible And Visual Alarms 50-40w Lights

Description
Size: 220mm X 165mm X 135mm Item Type: Explosion Proof Alarm Lights
Input Voltage: 220VAC, 50Hz,24VDC Temperature Classes: T1~ T6
Emergency Start Time: <0.3s Operating Temperature: -40°C To 40°C
Color: Red,yellow,blue,green Watts: 5~40W
Decibel: 120-180db
Highlight:

Aluminium Alloy explosion proof alarm lights

,

50w explosion proof alarm lights

,

40w explosion proof alarm lights

Aluminium alloy die-casting shell 120-180db explosion proof audible and visual alarms 50-40w explosion proof light

Product Description:

These Explosion Proof Alarm Lights are designed to operate in extreme conditions, with an operating temperature range of -40°C to 40°C. The Decibel range of 120-180db ensures that the alarm can be heard even in noisy environments. The Standby Current of ≤50mA ensures that the device is energy-efficient and does not consume too much power.
These Explosive Atmosphere Warning Signals are critical safety devices that can save lives and property. They are ideal for use in petrochemical plants, oil refineries, offshore drilling platforms, and other hazardous environments. The Explosion Proof Alarm Lights are designed to provide early warning of potential hazards and allow workers to take appropriate action to prevent accidents.



Features:

  • Product Name: Explosion Proof Alarm Lights
  • Temperature Classes: T1~ T6
  • Decibel: 120-180db
  • Ip Rating: IP65
  • Flash Frequency: 150min
  • Input Voltage: 220VAC, 50Hz
  • Flame Proof Signal Luminaries
  • Blast Proof Indicator Lights
  • Flame Proof Signal Luminaries


Technical Parameters:

Ex MarkingEx db IIB T4 Gb
ClassificationGroup II, Catogory 2 GD; Class I, Division 1 and 2,Group A,B,C,D;
IP DegreeIP66
Corrosion ResistantWF1/WF2
Input VoltageAC220-230V/DC24V/ DC36V
Decibel120-180db
Power5-40wW
Sound Strength90; 120; 180; 120
Flash Frequency150Times/min
ColorRed, Yellow, Blue, Green
Emergency start time<0.3s
Conduit EntriesG 3/4"
MountingCeiling
Net Weight1.8kg; 2.7kg; 3.7kg; 2.5kg
Aluminium Alloy Die Casting Shell 120-180db Explosion Proof Audible And Visual Alarms 50-40w  Lights 0

Applications:

The GYJ model is a Fire Hazard Warning Luminaire with a wattage range of 5-40W and temperature classes ranging from T1 to T6. The product is designed to be mounted on the ceiling, making it easy to install and use. It is also Ex Mark certified, with a rating of II 2GD Ex D E IIC T6 Gb / Ex Tb IIIC T130℃ Db, making it a blast proof indicator light.
The GYJ Explosion Proof Alarm Lights can be used in a range of applications and scenarios. In a chemical plant, the product can be used to warn workers of potential explosions or fire hazards. In a mining environment, it can be used to alert workers of dangerous gases or other hazards. In a pharmaceutical setting, it can be used to signal the presence of explosive materials or chemicals.
With a minimum order quantity of 1 set and a price range of $50-$200, the GYJ Explosion Proof Alarm Lights are an affordable and effective solution for businesses looking to ensure the safety of their workers and facilities. The product comes packaged with 1 set per carton and has a delivery time of 5-10 working days. Payment terms are T/T, and the product has a supply ability of 5000 sets per month.
Overall, the Crown Extra GYJ Explosion Proof Alarm Lights are a reliable and high-quality product that can be used in a range of hazardous environments to provide clear and effective explosive atmosphere warning signals.



Customization:

With a minimum order quantity of 1 set, prices range from $50-$200. Each set is carefully packaged, with 1 set per carton. Delivery time is estimated to be 5-10 working days, with payment terms being T/T.
With a supply ability of 5000 sets per month, this Blast Proof Indicator Light has an input voltage of 220VAC, 50Hz, and can be mounted on the ceiling. Choose from a range of colors including red, yellow, blue, and green, with a decibel range of 120-180db. The Flash Frequency is set at 150min.



Support and Services:

Our Explosion Proof Alarm Lights are designed and manufactured with the highest standards of quality and safety in mind. Should you need any technical assistance or support with your product, our team of experts is available to help you.
We offer a variety of services to ensure the proper installation, operation, and maintenance of your Explosion Proof Alarm Lights. Our services include:

  • Product installation and commissioning
  • On-site training for product operation and maintenance
  • Repair and maintenance services
  • Product upgrades and retrofits

Our goal is to provide you with exceptional customer service and support throughout the entire lifecycle of your product. Please do not hesitate to contact us if you have any questions or concerns.



FAQ:

Q1: What is the brand name of the explosion proof alarm lights?
A1: The brand name of the explosion proof alarm lights is Crown Extra.
Q2: What is the model number of the explosion proof alarm lights?
A2: The model number of the explosion proof alarm lights is GYJ.
Q3: Where are the explosion proof alarm lights manufactured?
A3: The explosion proof alarm lights are manufactured in China.
Q4: What certifications do the explosion proof alarm lights have?
A4: The explosion proof alarm lights are certified with ATEX.
Q5: What is the minimum order quantity for the explosion proof alarm lights?
A5: The minimum order quantity for the explosion proof alarm lights is 1 set.
Q6: What is the price range for the explosion proof alarm lights?
A6: The price range for the explosion proof alarm lights is $50-$200.
Q7: What are the packaging details for the explosion proof alarm lights?
A7: The packaging details for the explosion proof alarm lights are 1 set per carton.
Q8: What is the delivery time for the explosion proof alarm lights?
A8: The delivery time for the explosion proof alarm lights is 5-10 working days.
Q9: What are the payment terms for the explosion proof alarm lights?
A9: The payment terms for the explosion proof alarm lights are T/T.
Q10: What is the supply ability for the explosion proof alarm lights?
A10: The supply ability for the explosion proof alarm lights is 5000 sets per month.Aluminium Alloy Die Casting Shell 120-180db Explosion Proof Audible And Visual Alarms 50-40w  Lights 1
