Product Details:
|
| Brand: | Crown Extra | Product Name: | Explosion Proof High Bay Light GYD680 |
|---|---|---|---|
| Material: | Aluminum | CRI: | Ra:≥80 |
| Efficiency: | 140lm/w | Certified: | CNEX,EX,IP66,IEC,IECEX |
| Mounting: | Bracket.Ceiling,Flange Mount,Wall Mount | CCT: | 3000/4000/5000/5700K |
| Voltage: | AC 100-277V,50HZ/60HZ:24/36VDC | ||
| Highlight: | Good Quality high bay explosion proof,140ml/w high bay explosion proof,high Efficiency high bay explosion proof |
||

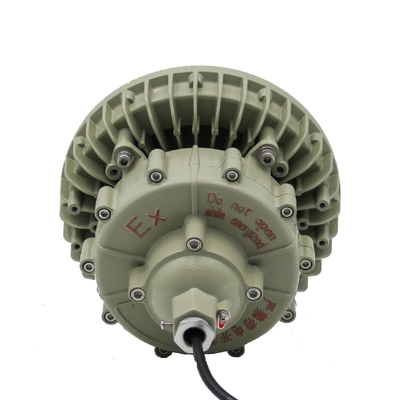

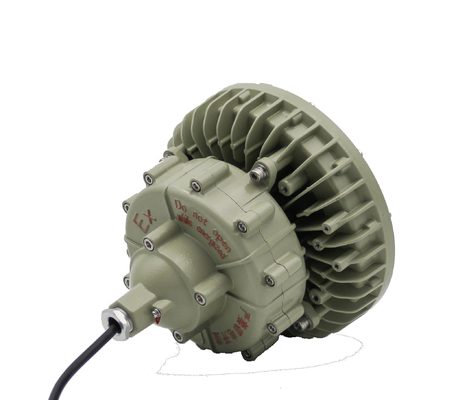

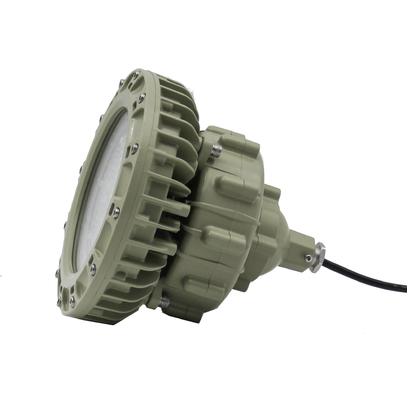

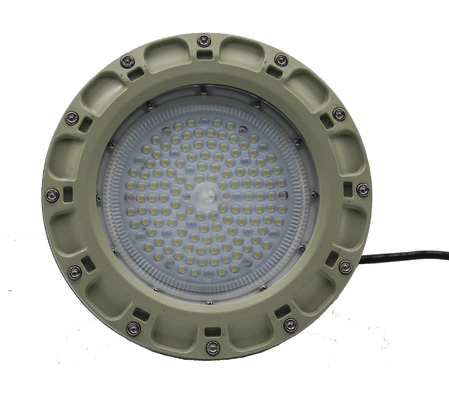

Good Quality IP66 100W 150W explosion proof led high bay light Industrial Factory 140ml/w high light efficiency
Features:
1. Zone 1&2, Zone 21&22
2. Instant on crisp white light output
3. High efficiency drivers and LEDs provide Low cost operation in harsh andheavyindustrial applications
4. Isolated LED compartment reducestemperature within driver housing
5. Multi choice of beamangle for 60° 90° 120°
Applications
| Typical applications include: |
| Oil and gas industries |
| Chemical, petrochemical |
| Pharmaceutical industries |
| Pulp and Paper |
| Waste and sewage treatment |
| Power Generation |
| Other high humidity, high dust, high temperature, vapor locations |
| Housing: | Die-casting aluminum |
| Exterior: | Stainless steel |
| Globe: | Tempered glass |
| Gasket: | Silicon rubber |
| Certifications |
ATEX
CNEX
CE
RoHS
ISO9001
|
| For use in |
Zone 1, 2 & Zone 21, 22
|
| Rated voltage | 100-277VAC, 50-60Hz |
| Power factor | >0.98 |
| THD | <20% |
| Power consumption [W] | 50-100W, 120-150W |
| Colour rendering [CRI] | 70 (±2) |
| Colour temperature [K] | 3000-6500 |
| Luminaire efficiency[Lm/W] | 130-145 |
| Beam angle | 120° (60°, 90° optical len is optional) |
| Degree of protection | IP66 |
| Cable entry | G 3/4”;NPT3/4” |
| Weight [kg] | 7.25;8.6 |
| Terminal | ≤2.5 mm² |
| Mounting Styles | Ceiling; Wall Bracket; Pendant |
Dimension [mm]
Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
